Header for FRU information helper functions. More...

#include <limits.h>
#include <stdbool.h>
#include <stdint.h>
#include <stdlib.h>
#include <sys/time.h>
#include <sys/types.h>

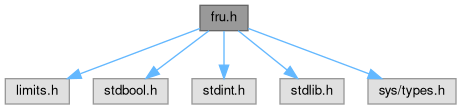

Include dependency graph for fru.h:

Go to the source code of this file.

Data Structures
struct	fru_field_t
	A generic input (decoded) field structure. More...

struct	fru_chassis_t
	The exploded representation of chassis info area. More...

struct	fru_board_t
	The exploded representation of board info area. More...

struct	fru_product_t
	The exploded representation of product info area. More...

struct	fru_t
	Exploded/decoded FRU data structure. More...

struct	fru_mr_rec_t
	MultiRecord area record type. More...

Macros
#define	LIBFRU_MAJOR
	Major component of the library version.

#define	LIBFRU_MINOR
	Minor component of the library version.

#define	LIBFRU_SUBMINOR
	Subminor component of the library version.

#define	LIBFRU_VERSION
	Integer representation of the library version.

#define	FRU_MAX(a, b)
	Return the maximum of a and b.

#define	FRU_MIN(a, b)
	Return the minimum of a and b.

#define	FRU_FIELDMAXARRAY
	For C-string allocation.

#define	FRU_INFO_AREAS
	Number of standard 'info' areas.

#define	FRU_FIRST_INFO_AREA
	Index of the first 'info' area.

#define	FRU_LAST_INFO_AREA
	Index of the first 'info' area.

#define	FRU_IS_INFO_AREA(atype)
	Check if atype is an information area type.

#define	FRU_ATYPE_TO_INFOIDX(atype)
	Convert an area type atype into an information area index or to -1 if atype is not an info area type.

#define	FRU_INFOIDX_TO_ATYPE(idx)
	Convert an info area index idx into a full-range area type or to (fru_area_type_t)(-1) if idx was invalid.

#define	FRU_INFOIDX(a)
	Get the info area index from an area type enum name.

#define	FRU_FOREACH_INFOIDX(it)
	Iterate through all info area indices using it as an iterator.

#define	FRU_FOREACH_INFOFIELD(fru, atype, f, idx)
	Iterate through all info area standard fields within the given atype info area of the given fru.

#define	FRU_FOREACH_INFOCUSTOM(fru, atype, f, idx)
	Iterate through all info area custom fields within the given atype info area of the given fru.

#define	FRU_REAL_FE(t)
	Convert a fru_field_enc_t value to an index to a FRU_FE_REALCOUNT-sized array.

#define	FRU_FE_FROMREAL(t)
	Convert an index to a FRU_FE_REALCOUNT-sized array to a fru_field_enc_t value.

#define	FRU_FE_IS_REAL(t)
	Check if t is a 'real' encoding type? (One that is defined by FRU specification)

#define	FRU_FIELD_IS_REAL_ENC(f)
	Check if field f is non-NULL and has a real encoding.

#define	FRU_FIELD_IS_AUTO_ENC(f)
	Check if field f is non-NULL and has an auto encoding.

#define	FRU_MAX_FIELD_COUNT
	Max mandatory field count among all info areas.

#define	FRU_IS_VALID_AREA(atype)
	Check if atype is any valid area type.

#define	FRU_FOREACH_AREA(it)
	Iterate through all area types using it as an iterator.

#define	FRU_ATYPE_HAS_TYPE(atype)
	Check if the area has a 'type' field.

#define	FRU_ATYPE_HAS_LANG(atype)
	Check if the area has a 'lang' field.

#define	FRU_ARRAY_SZ(a)
	A convenience macro to get the size of an array in elements.

#define	FRU_LIST_HEAD
	Add entry at the head of the list, used by fru_add_mr() and alike.

#define	FRU_LIST_TAIL
	Add entry at the end of the list, used by fru_add_mr() and alike.

#define	FRU_IS_APOS_VALID(pos)

#define	fru_free(fru)
	Deallocate a dynamically allocated fru structure.

#define	FRU_MR_IS_VALID_TYPE(t)
	The FRU_MR_RAW is not considered a valid type, must be checked separately.

#define	FRU_MR_OEM_COUNT
	The total number of possible OEM types to Multirecord area records.

#define	FRU_MR_OEM(n)
	An OEM Multirecord area type, make sure that n is less than FRU_MR_OEM_COUNT.

#define	FRU_MRR_OEM_MAXDATA
	Maximum length of OEM MR record data in decoded form (NUL-terminated hex string)

#define	FRU_MRR_RAW_MAXDATA
	Maximum length of Custom/Raw MR record data in decoded form (NUL-terminated hex string)

#define	FRU_MR_MGMT_IS_SUBTYPE_VALID(mt)
	Is the MR management access record subtype mt valid?

#define	FRU_MR_MGMT_SUBTYPE_TO_IDX(mt)
	Convert a valid MR Management Access Record subtype into a 0-based index or into -1 if mt is not a valid subtype.

#define	FRU_MR_MGMT_IDX_TO_SUBTYPE(i)
	Convert a valid 0-based index into an MR Management Access Record subtype or to FRU_MR_MGMT_INVALID if the result would not be a valid subtype.

#define	FRU_MR_MGMT_MAXDATA
	Maximum length of data in MR Management Access record.

Typedefs
typedef void *	fru_custom_t
	A list of custom fields of an info area.

typedef void *	fru_mr_t
	A pointer to multi-record area descriptor.

Enumerations
enum	fru_field_enc_t { FRU_FE_EMPTY , FRU_FE_BASE , FRU_FE_BINARY , FRU_FE_MIN , FRU_FE_BCDPLUS , FRU_FE_6BITASCII , FRU_FE_TEXT , FRU_FE_MAX , FRU_FE_AUTO , FRU_FE_UNKNOWN , FRU_FE_PRESERVE , FRU_FE_TOTALCOUNT , FRU_FE_REALCOUNT }
	Field encoding type. More...

enum	fru_chassis_field_t { FRU_CHASSIS_PARTNO , FRU_CHASSIS_SERIAL , FRU_CHASSIS_FIELD_COUNT }
	Indices of mandatory fields in Chassis Info Area. More...

enum	fru_lang_t { FRU_LANG_DEFAULT , FRU_LANG_ENGLISH }
	Language code definitions as per IPMI FRU Specification, Table 15-1. More...

enum	fru_board_field_t { FRU_BOARD_MFG , FRU_BOARD_PRODNAME , FRU_BOARD_SERIAL , FRU_BOARD_PARTNO , FRU_BOARD_FILE , FRU_BOARD_FIELD_COUNT }
	Indices of mandatory fields in Board Info Area. More...

enum	fru_prod_field_t { FRU_PROD_MFG , FRU_PROD_NAME , FRU_PROD_MODELPN , FRU_PROD_VERSION , FRU_PROD_SERIAL , FRU_PROD_ASSET , FRU_PROD_FILE , FRU_PROD_FIELD_COUNT }
	Indices of mandatory fields in Product Info Area. More...

enum	fru_area_type_t { FRU_INTERNAL_USE , FRU_MIN_AREA , FRU_CHASSIS_INFO , FRU_BOARD_INFO , FRU_PRODUCT_INFO , FRU_MR , FRU_MAX_AREA , FRU_TOTAL_AREAS }
	FRU area types. More...

enum	fru_flags_t { FRU_NOFLAGS , FRU_IGNFVER , FRU_IGNFHCKSUM , FRU_IGNFDCKSUM , FRU_IGNAVER , FRU_IGNRVER , FRU_IGNACKSUM , FRU_IGNRHCKSUM , FRU_IGNRDCKSUM , FRU_IGNRNOEOL , FRU_IGNBIG , FRU_IGNAEOF , FRU_IGNMRVER , FRU_IGNMRDATALEN }
	Debug flags to FRU decoding functions. More...

enum	fru_area_position_t { FRU_APOS_LAST , FRU_APOS_FIRST , FRU_APOS_AUTO , FRU_AFTER_INTERNAL , FRU_APOS_MIN , FRU_AFTER_CHASSIS , FRU_AFTER_BOARD , FRU_AFTER_PRODUCT , FRU_AFTER_MR , FRU_APOS_MAX }
	Define FRU area position in the binary file. More...

enum	fru_mr_type_t { FRU_MR_MIN , FRU_MR_PSU_INFO , FRU_MR_DC_OUT , FRU_MR_DC_LOAD , FRU_MR_MGMT_ACCESS , FRU_MR_BCR , FRU_MR_ECR , FRU_MR_ASF_FIXED_SMBUS , FRU_MR_ASF_LEGACY_ALERTS , FRU_MR_ASF_REMOTE_CTRL , FRU_MR_EXT_DC_OUT , FRU_MR_EXT_DC_LOAD , FRU_MR_NVME , FRU_MR_NVME_PCIE_PORT , FRU_MR_NVME_TOPOLOGY , FRU_MR_NVME_RSVD_E , FRU_MR_NVME_RSVD_F , FRU_MR_OEM_START , FRU_MR_OEM_END , FRU_MR_MAX , FRU_MR_RAW , FRU_MR_TYPE_COUNT , FRU_MR_ANY , FRU_MR_EMPTY }
	MultiRecord Area Record Types (Table 16-2) More...

enum	fru_mr_mgmt_type_t { FRU_MR_MGMT_INVALID , FRU_MR_MGMT_MIN , FRU_MR_MGMT_SYS_URL , FRU_MR_MGMT_SYS_NAME , FRU_MR_MGMT_SYS_PING , FRU_MR_MGMT_COMPONENT_URL , FRU_MR_MGMT_COMPONENT_NAME , FRU_MR_MGMT_COMPONENT_PING , FRU_MR_MGMT_SYS_UUID , FRU_MR_MGMT_MAX , FRU_MR_MGMT_INDEX_COUNT }
	Management Access Record subtypes (Table 18-6) More...

enum	fru_nvme_ff_t { FRU_NVME_FF_UNKNOWN }
	NVMe Form-Factor, see NVMe-MI Spec rev 1.2b, Figure 160. More...

Functions
bool	fru_setfield (fru_field_t field, fru_field_enc_t encoding, const char string)
	Copy string to the given field, perform length check according to selected encoding, truncate if needed.

bool	fru_setfield_binary (fru_field_t field, const void buf, size_t size)
	Copy a binary input buffer into the given field, perform length check, truncate if needed.

fru_field_t *	fru_getfield (const fru_t *fru, fru_area_type_t atype, size_t index)
	Get a pointer to a mandatory field in the info area of the given type in the given fru structure.

fru_field_t *	fru_add_custom (fru_t fru, fru_area_type_t atype, size_t index, fru_field_enc_t encoding, const char string)
	Add a custom field to the given area type in the given fru structure.

fru_field_t *	fru_get_custom (const fru_t *fru, fru_area_type_t atype, size_t index)
	Get a pointer to a custom data field in the area of the given type in the given fru structure.

bool	fru_delete_custom (fru_t *fru, fru_area_type_t atype, size_t index)
	Delete a custom data field in the area of the given type in the given fru structure.

int16_t	fru_hex2byte (const char *hex)
	Convert 2 first bytes of hex string into a binary byte.

fru_t *	fru_init (fru_t *fru)
	Initialize/allocate a fru structure.

fru_t *	fru_loadfile (fru_t fru, const char filename, fru_flags_t flags)
	Load FRU information from a binary file.

fru_t *	fru_loadbuffer (fru_t fru, const void buf, size_t size, fru_flags_t flags)
	Load FRU information from a binary file.

void	fru_wipe (fru_t *fru)
	Wipe the contents of a fru_t structure.

bool	fru_enable_area (fru_t *fru, fru_area_type_t area, fru_area_position_t after)
	Enable a previously disabled / non-present area.

bool	fru_disable_area (fru_t *fru, fru_area_type_t atype)
	Disable a previously enabled / present area.

bool	fru_move_area (fru_t *fru, fru_area_type_t area, fru_area_position_t after)
	Move an enabled/present area.

bool	fru_savebuffer (void *bufptr, size_t size, const fru_t *fru)
	Encode a FRU info structure into a binary buffer.

bool	fru_savefile (const char fname, const fru_t fru)
	Encode a FRU info structure into a binary file.

fru_mr_rec_t *	fru_add_mr (fru_t fru, size_t index, fru_mr_rec_t rec)
	Add a multirecord area record.

fru_mr_rec_t *	fru_get_mr (const fru_t *fru, size_t index)
	Get a multirecord area record at the given index.

fru_mr_rec_t *	fru_find_mr (const fru_t fru, fru_mr_type_t type, size_t index)
	Find a multirecord area record of the given type or at the given index.

bool	fru_replace_mr (fru_t fru, size_t index, fru_mr_rec_t rec)
	Replace a multirecord area record at the given index.

bool	fru_delete_mr (fru_t *fru, size_t index)
	Delete a multirecord area record at the given index.

bool	fru_set_internal_binary (fru_t fru, const void buffer, size_t size)
	Set internal use area from binary buffer.

bool	fru_set_internal_hexstring (fru_t fru, const void hexstr)
	Set internal use area from a hex string.

bool	fru_delete_internal (fru_t *fru)
	Delete internal use area from FRU structure.

Detailed Description

Header for FRU information helper functions.

Copyright: Copyright (C) 2016-2024 Alexander Amelkin alexa.nosp@m.nder.nosp@m.@amel.nosp@m.kin..nosp@m.msk.r.nosp@m.u

SPDX-License-Identifier: GPL-2.0-or-later OR Apache-2.0

Macro Definition Documentation

◆ FRU_FIELDMAXARRAY

#define FRU_FIELDMAXARRAY

For C-string allocation.

You probably don't need to directly use this, prefer using fru_field_t type:

fru_field_t field;

if (strlen(mystring) >= sizeof(field.val)) {
    // Smells like buffer overflow
}

Better yet, use fru_set_field() that performs the required checks itself.

◆ FRU_MAX

#define FRU_MAX	(	a,
		b
	)

Return the maximum of a and b.

◆ FRU_MIN

#define FRU_MIN	(	a,
		b
	)

Return the minimum of a and b.
